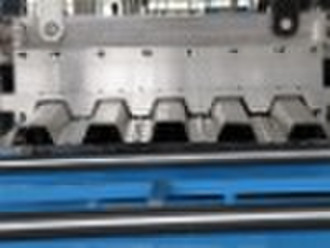

metal deck roll machine

metal deck roll machine: 1) Main power:37KW 2) Roll stations:50stations 3)1.5 inch single chain drive (with casing) 4) Diameter of shaft: 105mm 5) Cutting system: hydraulic cutting 6) Length tolerance: 3mm-1.5mm 7) Working speed: 12-16m/min 8) Thickness of material: 0.7-1.5mm 9) Material of shaft: GCr12 steel, quenching HRC58-62 10) Material of blade: Cr12, quenched 58-62 11) Material of Rolls:Q195,Q235. 12) Transducer: Panasonic 13) Hydraulic pressure: 20Mpa 14) Hydraulic power: 5.5kw 15) Control system: PLC, Panasonic 16) Size of machine: approx 28m*2.4m*2m (divided into 3 parts) Metal Deck roll forming machinehas simple structure, beautiful appearance, easy to inst roll machine
